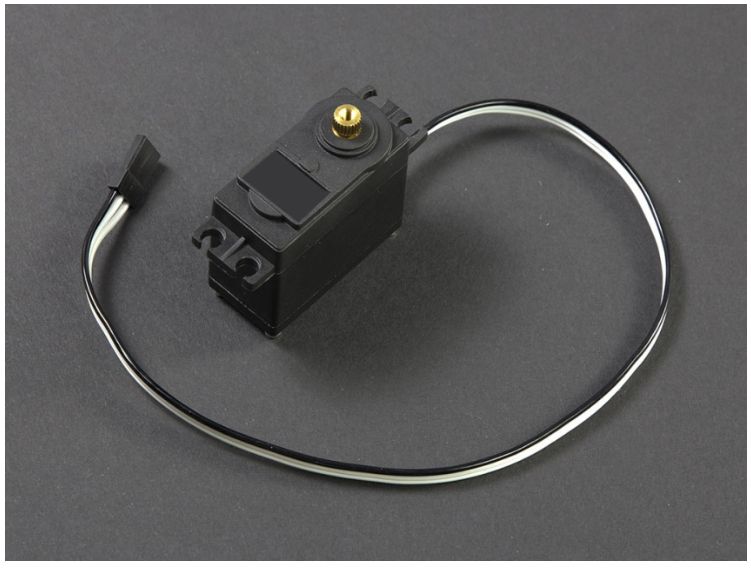

Heavy Duty Servo (Digital)

This heavy duty digital servo is capable of lifting an impressive 19 kg/cm, making it a powerful and reliable option for your robotics needs.

Key Features:

• Metal Internal Gears: Designed to withstand high loads for durability and performance.
• Voltage Compatibility: Built for the EZ-B v4, it can comfortably operate on 7.4v LiPo battery power.
• Heavy Duty Construction: Engineered with metal gears and a metal shaft, ensuring strength and longevity.

Applications:

This servo is the recommended choice for powering Revolution robots, including:

• Humanoid JD
• Hexapod Six

Performance Specifications:

• Operating Speed: 0.22±0.01 sec/60° (7.4v)
• Running Current: 1400±30mA (7.4v)
• Stall Torque: 19±0.20kg·cm (7.4v)
• Stall Current: 3000±50mA (7.4v)
• Running Life: Over 180,000 Turns
• Temperature Range: -10°C to +50°C
• Operating Voltage: 4.8V to 8.4V

Built for Toughness:

Inside the HDD servo motors, you'll find metal gears and real ball bearings. These components ensure the strength necessary for your robots to walk, move, or lift with ease. This servo has been meticulously engineered through years of R&D to deliver exceptional durability.

Additional Details:

• Dual Ball Metal Bearings
• Connector Wire Length: 32cm
• Futaba 3f (25 teeth) driving spline/shaft
• 6.2mm C1 Standard Spline (including teeth)

Experience the robust power and reliability of these Heavy Duty Digital Servo Motors—perfect for demanding robotics applications.
