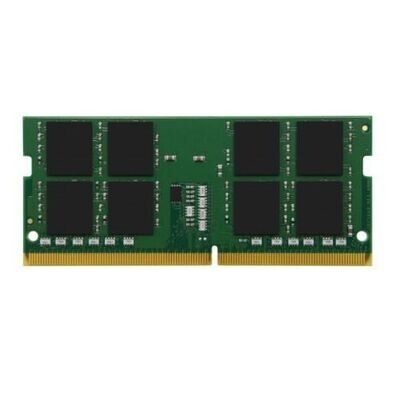

Kingston 16GB DDR4 2666MHz (PC4-21300), CL19 SODIMM Memory

Overview
ValueRAM's KVR26S19D8/16 is a 2G x 64-bit (16GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 2Rx8, non-ECC memory module. It is built using sixteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V, ensuring reliable performance. This 260-pin DIMM features gold contact fingers for enhanced durability.

Key Features

• Power Supply:

  • VDD = 1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP = 2.5V Typical
  • VDDSPD = 2.2V to 3.6V

• Performance Enhancements:

  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self-refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration

• Technical Specifications:

  • Dual-rank memory module
  • On-board I2 serial presence-detect (SPD) EEPROM
  • 16 internal banks (4 groups of 4 banks each)
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus

• Physical Attributes:

  • PCB Height: 1.18” (30.00mm)
  • RoHS Compliant and Halogen-Free

Technical Specifications

• Series: Kingston ValueRAM
• DDR Type: DDR4 SODIMM
• Size: 1 x 16GB
• Speed: 2666 MHz
• Compliance: PC4-21300
• Pins: 260-pin
• CAS Latency: 19-19-19
• Data Integrity Check: Non-ECC
• Voltage: 1.2V

This Kingston ValueRAM DDR4 module is an excellent choice for those seeking reliable, high-performance memory with advanced features and compliance with industry standards.
