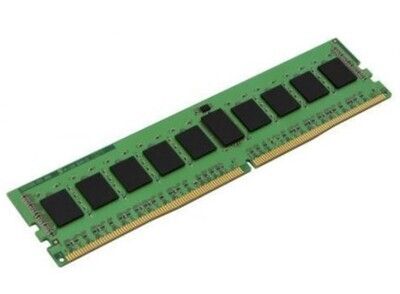

Kingston 16GB, DDR4, 3200MHz (PC4-25600), CL22, DIMM Memory

ValueRAM's KVR32N22D8/32 is a high-performance memory module designed to deliver reliability and efficiency. Below are the key features and specifications of this 16GB DDR4-3200 CL22 SDRAM:

Product Highlights:

• Memory Type: 4G x 64-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8.
• Components: Based on sixteen 2G x 8-bit FBGA components.
• Latency & Voltage: SPD programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V.
• DIMM Design: Each 288-pin DIMM uses gold contact fingers for enhanced durability.

Technical Specifications:

• Power Supply:
  • VDD = 1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP = 2.5V Typical
  • VDDSPD = 2.2V to 3.6V
• Features:
  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals.
  • Low-power auto self-refresh (LPASR).
  • Data bus inversion (DBI) for data bus.
  • On-die VREFDQ generation and calibration.
  • Dual-rank design.
  • On-board I2 serial presence-detect (SPD) EEPROM.
  • 16 internal banks; 4 groups of 4 banks each.
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS).
  • Selectable BC4 or BL8 on-the-fly (OTF).
  • Fly-by topology.
  • Terminated control command and address bus.
• PCB Dimensions: Height 1.23” (31.25mm).
• Compliance: RoHS Compliant and Halogen-Free.

Additional Details:

• Series: Kingston ValueRAM
• DDR Type: DDR4
• Size: 1 x 16GB
• Speed: 3200 MHz
• Compliance: PC4-25600
• Pins: 288-pin
• CAS Latency: CL22
• Data Integrity Check: Non-ECC
• Voltage: 1.2V
• Timings: 22-22-22
• Heatspreader: No

This Kingston ValueRAM module is an ideal solution for users seeking reliable and efficient memory performance for their systems.
