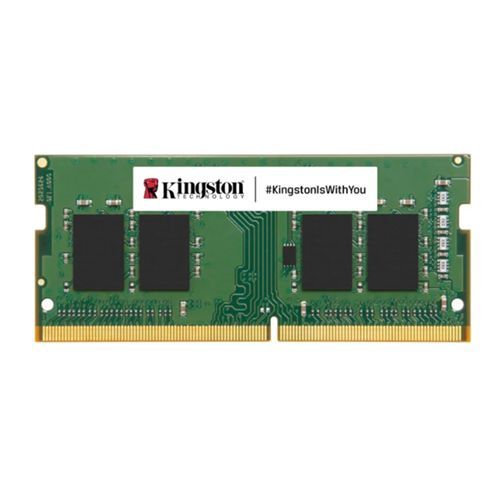

Kingston 16GB, DDR4, 3200MHz (PC4-25600), CL22, SODIMM Memory

Key Features of the Kingston 16GB DDR4 SODIMM Memory

16GB 1Rx8 2G x 64-Bit PC4-3200 CL22 260-Pin SODIMM
ValueRAM's KVR32S22S8/16 is a high-quality 16GB DDR4-3200 CL22 SDRAM (Synchronous DRAM) module. It features 1Rx8, non-ECC architecture and is built using eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM employs gold contact fingers for enhanced durability and performance.

Technical Specifications

• Power Supply:

  • VDD = 1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP = 2.5V Typical
  • VDDSPD = 2.2V to 3.6V

• Advanced Features:

  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self-refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration

• Design:

  • Single-rank
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus

• Other Details:

  • On-board I2 serial presence-detect (SPD) EEPROM
  • PCB height: 1.18" (30.00mm)
  • RoHS Compliant and Halogen-Free

Product Information

• Series: Kingston ValueRAM
• DDR Type: DDR4 SODIMM
• Size: 1 x 16GB
• Speed: 3200 MHz
• Compliance: PC4-25600
• Pins: 260-pin
• CAS Latency: CL22
• Data Integrity Check: Non-ECC
• Voltage: 1.2V Typical
• Package Type: Retail
• Package Weight: 0.0225 kg

This memory module is a reliable and efficient choice for upgrading your system, delivering high-speed performance and compatibility with JEDEC standards.
