Kingston 8GB, DDR4, 2666MHz (PC4-21300), CL19, DIMM Memory (KVR26N19S8/8)
Product Details
Brand: Kingston

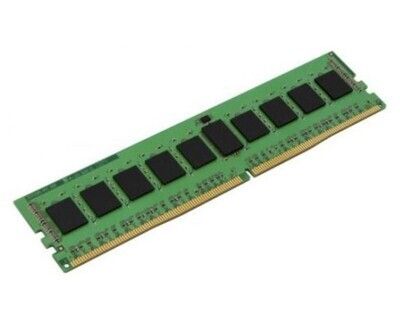

ValueRAM's KVR26N19S8/8 is a 1G x 64-bit (8GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8 memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Key Features
- Power Supply:
- VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals.
- Low-power auto self-refresh (LPASR).
- Data bus inversion (DBI) for data bus.
- On-die VREFDQ generation and calibration.
- Single-rank module.
- On-board I2 serial presence-detect (SPD) EEPROM.
- 16 internal banks; 4 groups of 4 banks each.
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS).
- Selectable BC4 or BL8 on-the-fly (OTF).
- Fly-by topology.
- Terminated control command and address bus.
- PCB Height: 1.23” (31.25mm).
- RoHS Compliant and Halogen-Free.
Technical Specifications
- Series: Kingston ValueRAM
- DDR Type: DDR4
- Size: 1 x 8GB
- Speed: 2666 MHz
- Compliance: PC4-21300
- Pins: 288-pin
- CAS Latency: CL19
- Data Integrity Check: Non-ECC
- Low Voltage: No, Voltage 1.2V Typical
- Timings: 19-19-19
- Heatspreader: No
Packaging Details
- Package Type: Blister Pack
- Package Weight: 0.0225 kg
