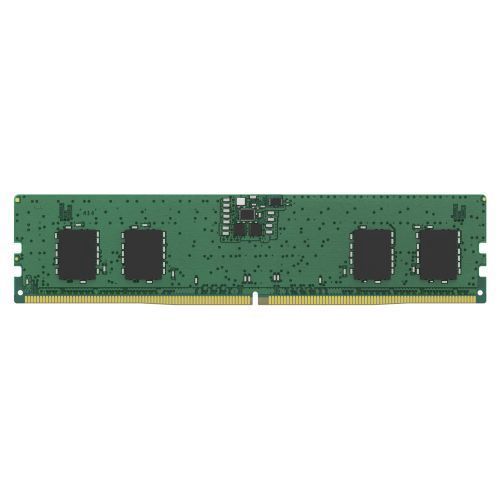

Kingston 8GB, DDR5, 5600MHz, CL46, 1.1V, DIMM Memory

8GB 1Rx16 1G x 64-Bit PC5-5600 CL46 288-Pin DIMM

Kingston ValueRAM's KVR56U46BS6-8 is a high-performance 8GB DDR5-5600 CL46 SDRAM memory module, designed with precision and reliability. This module is based on four 1G x 16-bit FBGA components and adheres to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. It features gold contact fingers for enhanced durability and performance.

Key Features:

• Power Supply:
  • VDD = 1.1V Typical
  • VDDQ = 1.1V Typical
  • VPP = 1.8V Typical
  • VDDSPD = 1.8V to 2.0V
• On-Die ECC for improved data integrity.
• PCB Height: 1.23” (31.25mm).
• RoHS Compliant and Halogen-Free for environmental safety.

Specifications:

• Series: Kingston ValueRAM
• DDR Type: DDR5
• Size: 1 x 8GB
• Speed: 5600 MHz
• Compliance: PC5-44800
• Pins: 288-pin
• CAS Latency: CL46
• Data Integrity Check: Non-ECC
• Voltage: 1.1V
• Timings: 46-45-45
• Heatsink: No
• LED Lighting: None

Additional Information:

• Package Type: Retail
• Package Weight: 0.0160 kg

This memory module is an excellent choice for users seeking dependable and efficient performance for their systems.
