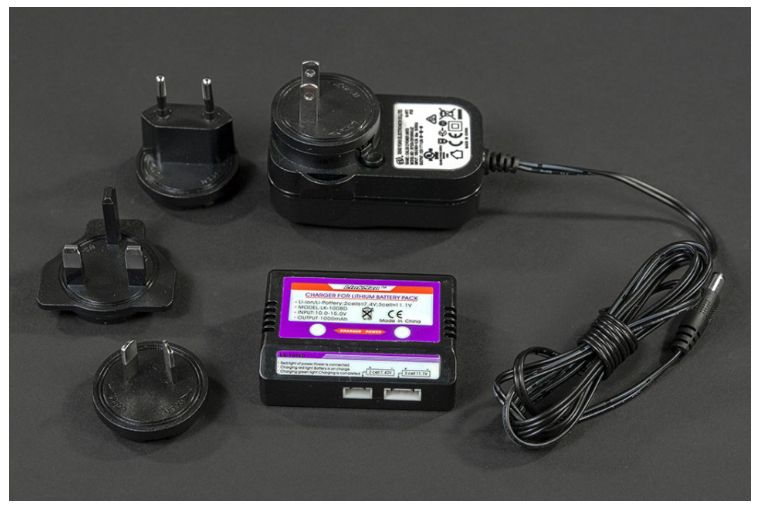

LIPO Battery Charger

Recommended balancer charger for our LiPo Robot Battery 7.4v 1300mAh

This balancer charger is designed to monitor the voltage of each cell in a pack and adjust the charge on a per-cell basis. This ensures that all cells are brought to the same voltage, helping your batteries last longer.

Charging Process:

• The charger begins by charging at a constant current until each cell reaches 4.2V.
• It then switches to a constant voltage mode, where the charging current gradually reduces while maintaining the cell voltage at 4.2V.
• The process continues until the charge current drops to a small percentage of the initial charge rate, at which point the battery is considered fully charged.
  • Some manufacturers specify 2%, others 3%, though other values may also be used. The difference in achieved capacity is minimal.

This charger supports international voltage compatibility with 120 or 240 volts.

Specifications

• Input Voltage Range: 11-16V DC
• Built-in input reverse polarity protection
• Input Current: 1000mAh
• Output Current: 800mAh
• Intelligent automatic voltage detection
• Rechargeable Battery Type: 7.4V and 11.1V lithium battery
• Size: 68 x 47 x 20 mm
• Weight: 200g

Indicators:

• Red Light: Power indicator
• Green Light: Charging instructions
  • On: Charging
  • Off: Charged
• Green Flash and Off: Saturated Battery

This charger is a reliable and efficient solution for maintaining the health and longevity of your LiPo batteries.
