Lever Servo

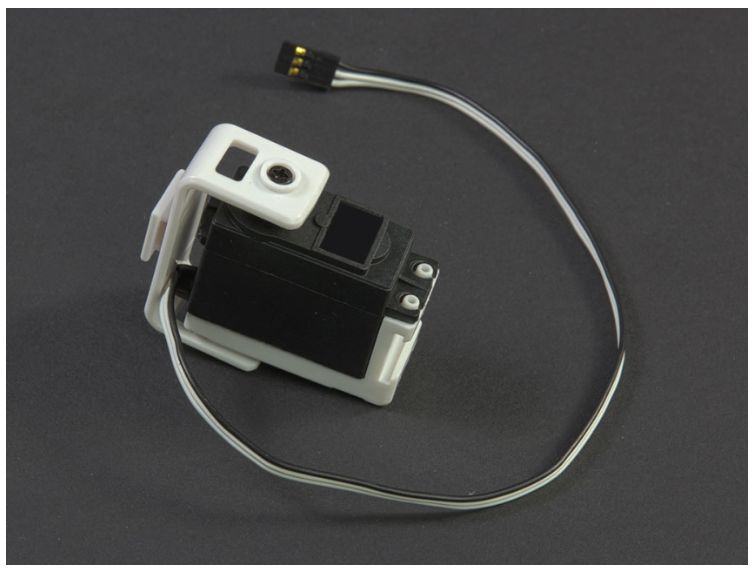

This is an HDD (heavy duty digital) 19 kg/cm servo with an EZ-Clip lever that rotates 180 degrees. The metal internals can withstand a high load.

Build Your Dream Robot

Dream up new robot functionality, and then build it. It's that simple! EZ-Clip servos are robot building blocks. Increase your robot's capabilities by adding more components and joints.

HEAVY DUTY DIGITAL SERVO MOTORS

Inside the HDD servo-motors are metal gears and real ball bearings that lift 19 kg/cm! These servos have enough strength to let your robots walk, move, or lift. Engineered to be tough from years of R&D, check out our demonstration video!

Features:

• Operating speed: 0.22±0.01 sec/60° (7.4v)
• Running current: 1400±30mA (7.4v)
• Stall torque: 19±0.20kg·cm (7.4v)
• Stall current: 3000±50mA (7.4v)
• Running life: > 180,000 Turns
• Temperature range: -10°C to +50°C
• Operating voltage: 4.8V to 8.4v
• Dual ball metal bearing
• All metal gears
• Connector wire length: 32cm
• Futaba 3f (25 teeth) for driving spline/shaft
• 6.2mm C1 standard spline (including teeth)

SIMPLY CLIP AND PLAY

Customize your robot with EZ-Bits. All EZ-Robots include EZ-Clip connections, making innovation and customization as fast as it is fun. Simply slide the tab into the slot to establish a secure bond. The parts may be separated again by sliding them apart. Multiple EZ-Bits can be connected together to make arms, legs, or anything else you dream up!

3D PRINTABLE OPEN SOURCE PARTS

The 3D printable STL files for all EZ-Bits and robot parts are available in the ARC Software. Customize and 3D print your own robot parts and designs... and then share them with other EZ-Robot users from around the world!
