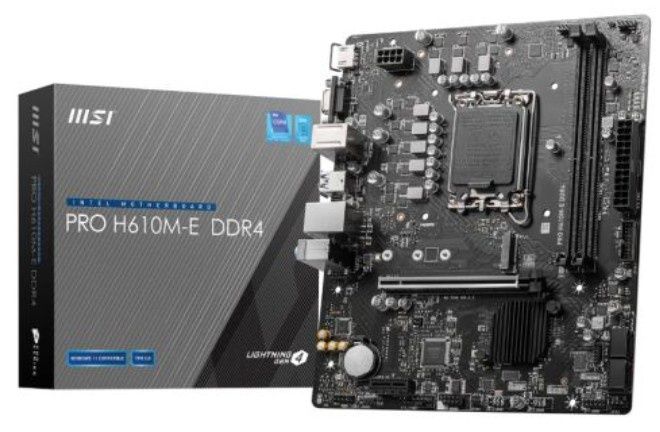

MSI PRO H610M-E DDR4, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, GB LAN, 1x M.2

Work Smarter with the PRO Series

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

Key Features

• Processor Support:

  • Intel® Core™ 14th/ 13th/ 12th Gen Processors
  • Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket

• Memory Support:

  • DDR4 Memory, up to 3200(MAX) MHz
  • Supports non-ECC, un-buffered memory

• Performance Enhancements:

  • Core Boost: Premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability, and compatibility
  • Lightning Fast Experience: PCIe 4.0 for enhanced speed

• Audio and Graphics:

  • Audio Boost: Studio-grade sound quality for an immersive audio experience
  • Steel Armor: Protects VGA cards against bending and EMI for better performance, stability, and strength

Advanced Technologies

• Lightning Gen4 Solution:
  The latest Gen4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed.

• EZ Debug LED:
  The easiest way to troubleshoot.

• Frozr AI Cooling:
  Detects CPU & GPU temperatures and automatically adjusts system fan duty to a proper value.

Specifications

Motherboard Type:

• Desktop

Form Factor:

• Micro ATX

Socket:

• Intel 1700

Chipset:

• Intel H610

RAM:

• Technology: DDR4 (Dual Channel)
• Slots: 2 x DIMM
• Speeds: Up to 3200 MHz
• Maximum Memory: 64GB

Graphics:

• Integrated Graphics (Specifications may vary between CPU types)
• Ports:
  • 1 x VGA
  • 1 x HDMI

PCI/PCI Express:

• 1 x PCIe 4.0 x16
• 1 x PCIe 3.0 x1

Storage:

• 4 x SATA III
• 1 x M.2 (2242/2260/2280) - PCIe 3.0 x4

LAN:

• GB LAN

Audio:

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

USB Ports Supported:

• Rear:
  • 2 x USB 5Gbps Type-A
  • 4 x USB 2.0
• Front:
  • 2 x USB 5Gbps Type-A
  • 4 x USB 2.0

Back Panel I/O Ports:

• 2 x USB 5Gbps Type-A
• 4 x USB 2.0
• 1 x HDMI 1.4
• 1 x VGA
• 1 x PS/2 Keyboard/Mouse Combo
• 1 x RJ-45
• 1 x Audio Line In
• 1 x Audio Line Out
• 1 x Microphone In

Internal I/O Connectors:

• 1 x Power (ATX_PWR)
• 1 x Power (CPU_PWR)
• 1 x CPU Fan
• 2 x System Fan
• 2 x Front Panel
• 1 x Chassis Intrusion
• 1 x Front Audio
• 1 x Com Port
• 1 x RGB LED
• 1 x TPM
• 2 x USB 2.0
• 1 x USB 5Gbps Type-A

Accessories:

• Quick Installation Guide
• M.2 Clip
• 2 x SATA Cables
• I/O Shield

Package Type:

• Retail

For CPU support, click here.
