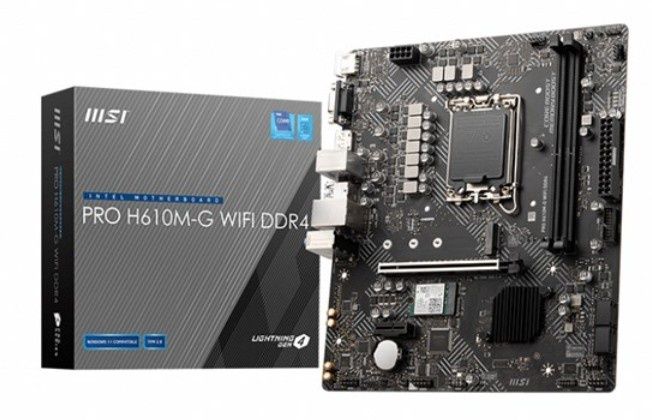

MSI PRO H610M-G WIFI DDR4, Intel H610 LGA 1700 Micro ATX

PRO H610M-G WIFI DDR4

The PRO series is designed to help users work smarter by providing an efficient and productive experience. With stable functionality and high-quality assembly, these motherboards ensure optimized professional workflows, reduced troubleshooting, and enhanced longevity.

Key Features

Fully Controllable in BIOS and Software

• Manage speeds and temperatures for all system and CPU fans.
• Total Fan Control: Simplified graphical interface to monitor system characteristics.
• Set up to 4 temperature targets for CPU and motherboard, with automatic fan speed adjustment.

FROZR AI Cooling

• Automatically detects CPU & GPU temperatures.
• Adjusts system fan duty using MSI AI ENGINE for optimal cooling.

Low Latency Gaming LAN Powered by Intel®

• Enjoy stable internet throughput with Intel® LAN, perfect for championship-level online gaming.

Wi-Fi AC & Bluetooth

• Wireless solution delivering AC speeds up to 433Mbps.
• No cable limitations for seamless connectivity.

Lightning Gen 4 PCI-E

• Latest and fastest PCI-E data transfer solution with 64GB/s transfer bandwidth.
• Backward and forward compatibility with older and newer specifications.
• Steel armor design supports heavy graphics cards.

Extreme Stability & Compatibility Testing

• Thorough memory testing under extreme conditions with popular brands like Corsair, Crucial, Kingston, and G.Skill.
• Ensures stable system performance and optimized memory configurations.

Core Boost Technology

• Combines premium layout and optimized power design for faster, precise current delivery to the CPU.
• Supports multi-core CPUs and ideal conditions for CPU overclocking.

Specifications

Processor

• Manufacturer: Intel
• Socket: LGA 1700
• Compatible Processor Series: Intel® Celeron®, Intel® Pentium®, Intel® Pentium® Gold

Memory

• Supported Memory Types: DDR4-SDRAM
• Number of Slots: 2 (DIMM)
• Channels: Dual-channel
• Maximum Memory: 64 GB
• Supported Clock Speeds: 2133, 2666, 2933, 3200 MHz

Storage

• Supported Drive Types: SSD
• Interfaces: M.2, SATA III
• RAID Support: Yes (Levels 0, 1, 5, 10)

Graphics

• DirectX Version: 12.0
• Parallel Processing Technology: Not supported

Internal I/O

• USB 2.0 Connectors: 2
• USB 3.2 Gen 1 Connectors: 2
• SATA III Connectors: 4
• Front Panel Audio Connector: Yes
• ATX Power Connector (24-pin): Yes
• CPU Fan Connector: Yes
• 12V Power Connector: Yes

Rear Panel I/O Ports

• USB 2.0 Ports: 4
• USB 3.2 Gen 1 Type-A Ports: 2
• Ethernet LAN Ports: 1
• VGA Ports: 1
• HDMI Ports: 1
• DisplayPorts: 1

Network

• Ethernet Interface Type: Gigabit Ethernet
• Wi-Fi Standard: Wi-Fi 5 (802.11ac)
• Bluetooth Version: 4.2

Audio

• Chip: Realtek ALC897
• Output Channels: 7.1 channels

Form Factor

• Motherboard Type: micro ATX
• Chipset: Intel H610

Operating System Compatibility

• Windows 10, Windows 11

BIOS

• Type: UEFI AMI
• Memory Size: 256 Mbit

Dimensions

• Width: 244 mm
• Depth: 211 mm
• Height: 65 mm

Packaging Content

• Cables Included: SATA
• Drivers Included: Yes

With its robust design and cutting-edge features, the PRO H610M-G WIFI DDR4 motherboard is the perfect choice for professionals and gamers alike.
