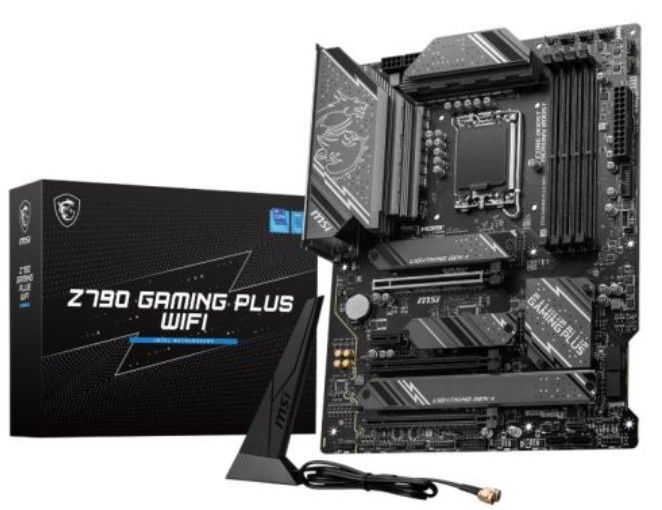

MSI Z790 GAMING PLUS WIFI, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, 4x M.2

Designed for Gamers Who Want It All

Z790 GAMING PLUS WIFI is packed with tons of connectivity, flexible tools, and a convenient Wi-Fi solution, featuring DDR5 memory support for an optimal gaming experience.

Key Features

• Processor Support:

  • Intel® Core™ 14th/13th/12th Gen Processors
  • Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket

• Memory:

  • Supports DDR5 Memory, up to 7200+(OC) MHz
  • Dual Channel, non-ECC, un-buffered memory
  • Supports Intel XMP3.0 OC

• Enhanced Power Design:

  • 14+1+1 Duet Rail Power System with DrMOS
  • Dual 8-pin CPU power connectors
  • Core Boost and Memory Boost

• Premium Thermal Solution:

  • Extended Heatsink
  • MOSFET thermal pads rated for 7W/mK
  • Additional choke thermal pads for high performance and non-stop gaming

• Lightning Fast Gaming Experience:

  • PCIe 5.0 slot
  • Lightning Gen 4 x4 M.2 with M.2 Shield Frozr
  • USB 3.2 Gen 2x2 20G

• High Quality PCB:

  • 6-layer PCB made with 2oz thickened copper

• Audio Boost:

  • Studio-grade sound quality for immersive gaming

Advanced Features

Latest DDR5 Memory

Experience a massive leap in DDR performance with DDR5 memory and MSI Memory Boost technology.

Lightning Gen 5

The latest PCIe 5.0 solution delivers up to 128GB/s bandwidth for maximum transfer speed.

Extended Heatsink Design

MSI's extended PWM heatsink and enhanced circuit design ensure top performance, even with high-end processors.

Quadruple M.2 Connectors

Onboard quadruple M.2 connectors provide maximum storage performance.

M.2 Shield FROZR

Thermal accessories protect M.2 SSDs from throttling, ensuring faster operation.

Core Boost

A premium layout and fully digital power design support more cores for enhanced performance.

2.5G Network Solution

Enjoy a superior network experience with premium 2.5G LAN.

Wi-Fi 6E

Supports the 6GHz spectrum, MU-MIMO, and BSS color technology, delivering speeds up to 2400Mbps.

Specifications

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: Intel 1700
• Chipset: Intel Z790

RAM

• Slots: 4 x DIMM
• Speeds: Up to 7200(OC)
• Maximum Memory: 256GB

Graphics

• Integrated Graphics (varies by CPU)
• Ports:
  • 1 x HDMI
  • 1 x DisplayPort

PCI/PCI Express

• 1 x PCIe 5.0 x16
• 1 x PCIe 4.0 x16
• 2 x PCIe 3.0 x1

Storage

• 6 x SATA III
• 4 x M.2:
  • M.2_1: PCIe 4.0 x4 (22110/2280/2260/2242)
  • M.2_2: PCIe 4.0 x4 (2280/2260/2242)
  • M.2_3: SATA & PCIe 4.0 x4 (2280/2260/2242)
  • M.2_4: SATA & PCIe 4.0 x4 (2280/2260/2242)

RAID Support

• RAID 0, 1, 5, 10 for SATA and M.2 NVMe storage devices

Wireless

• Intel Wi-Fi 6E module (pre-installed in M.2 Key-E slot)
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz), up to 2.4Gbps
• Bluetooth 5.3

LAN

• 2.5GB LAN

Audio

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

USB Ports

• Rear:

  • 1 x USB 20Gbps Type-C
  • 1 x USB 10Gbps Type-A
  • 2 x USB 5Gbps Type-A
  • 4 x USB 2.0

• Front:

  • 1 x USB 10Gbps Type-C
  • 4 x USB 5Gbps Type-A
  • 4 x USB 2.0

Back Panel I/O Ports

• 1 x USB 20Gbps Type-C
• 1 x USB 10Gbps Type-A
• 2 x USB 5Gbps Type-A
• 4 x USB 2.0
• 1 x DisplayPort 1.4
• 1 x HDMI 2.1
• 1 x PS/2 Keyboard/Mouse Combo
• 1 x RJ-45
• 1 x Audio Line In
• 4 x Audio Line Out
• 1 x Microphone In
• 2 x SMA Antenna

Internal I/O Connectors

• 1 x Power (ATX_PWR)
• 2 x Power (CPU_PWR)
• 1 x CPU Fan
• 1 x Pump Fan
• 6 x System Fan
• 2 x Front Panel
• 1 x Chassis Intrusion
• 1 x Front Audio
• 1 x Tuning Controller (JDASH)
• 2 x Addressable V2 RGB LED
• 2 x RGB LED
• 1 x TPM pin (TPM 2.0)
• 1 x USB4 card (JTBT_U4_1, supports RTD3)
• 4 x USB 2.0
• 4 x USB 5Gbps Type-A
• 1 x USB 10Gbps Type-C

Accessories

• Wi-Fi Antenna
• 2 x SATA Cables
• EZ M.2 Clips
• M.2 Screw / Standoff Set
• DVD Driver
• Cable Stickers
• Quick Installation Guide
• EU Regulatory Notice

Package Type

Retail
