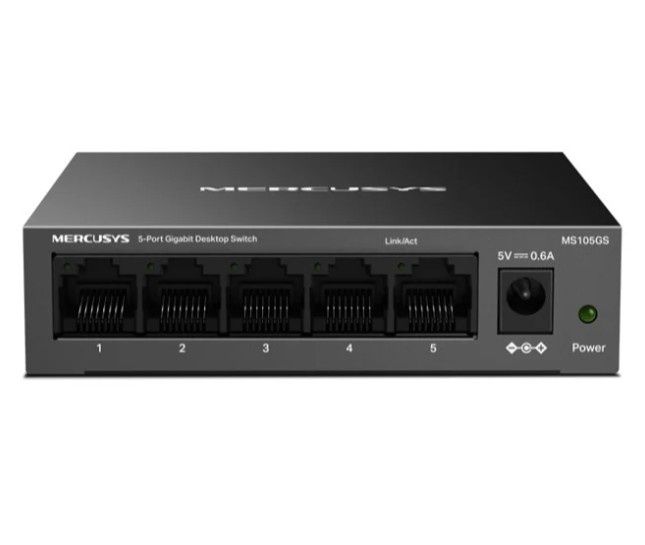

Mercusys 5-Port Gigabit Desktop Switch

More Efficient Transmission

Longer Usage Life

Expand Ethernet Network with Gigabit Ports

Quickly expand your wired network with five 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. The MS105GS is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.

Durable, Silent, and Flexible

The durable metal case of the MS105GS allows for:

• Efficient heat dissipation
• Excellent signal interference prevention
• Reliable equipment stability
• Long network life

You can place the switch on a desk or wall mount it to meet your needs.

Plug and Play

Forget about complicated installation! Simply connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. No configuration required.

Reliable Performance

With Half/Full Duplex and MAC Address Learning Technology, the MS105GS provides up to 10 Gbps of stable switching bandwidth. Every unit undergoes extensive testing prior to shipment to ensure reliable, uninterrupted connections for years to come.

Go Green with Your Ethernet

The MS105GS features the latest energy-efficient technologies, allowing you to expand your network capacity with less power consumption. It automatically adjusts power usage based on link status and cable length, helping to reduce the carbon footprint of your network.

Key Technical Features

Management Features

• Switch type: Unmanaged

Ports & Interfaces

• RJ-45 Ethernet ports: 5
• Port type: Gigabit Ethernet (10/100/1000)
• Power connector: DC-in jack

Network Standards

• Supported standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
• Full duplex support: YES
• Half duplex support: YES
• Flow control support: YES
• Auto MDI/MDI-X: YES
• Auto-negotiation: YES
• MAC address auto-learning and auto-aging: YES

Data Transmission

• Switching capacity: 10 Gbit/s
• MAC address table: 2000 entries
• Store-and-forward: YES
• Jumbo frames support: YES (9000)
• Packet buffer memory: 0.125 MB

Design

• Product colour: Black
• Housing material: Metal
• Wall mountable: YES
• Fanless design: YES
• LED indicators: YES

Power

• Power source: DC
• Power supply included: YES
• AC input voltage: 220 V
• AC input frequency: 50/60 Hz
• DC input voltage: 5 V
• Input current: 0.6 A
• Power consumption (max): 3.614 W

Operational Conditions

• Operating temperature: 0 - 40 °C
• Storage temperature: -40 - 70 °C
• Operating relative humidity: 10 - 90%
• Storage relative humidity: 5 - 95%
• Heat dissipation: 12.331 BTU/h

Dimensions

• Width: 99.8 mm
• Depth: 98 mm
• Height: 25.1 mm

Packaging Content

• Cables included: AC
• Quick start guide: YES

Certifications

• Certification: CE, RoHS

This Mercusys 5-Port Gigabit Desktop Switch is your reliable solution for expanding wired networks while maintaining high performance, durability, and energy efficiency.
