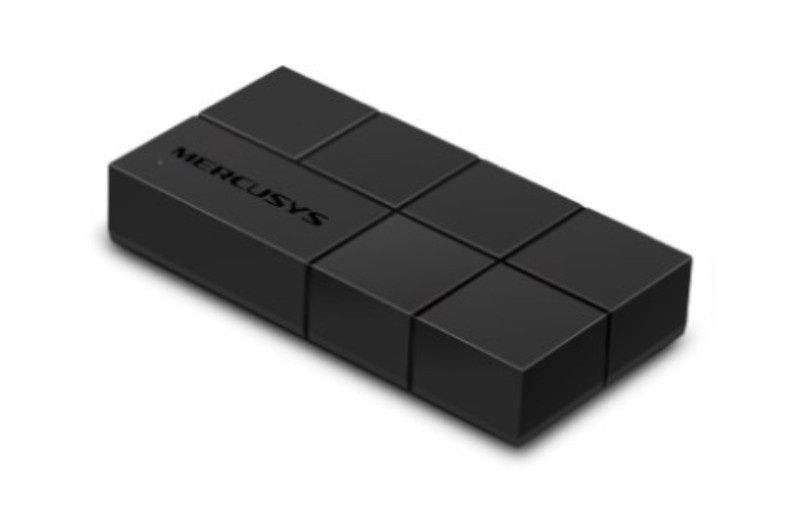

Mercusys 8-Port 10/100/1,000 Mbps Desktop Switch

More Efficient Transmission

8-Port 10/100/1000 Mbps Desktop Switch

Expand Ethernet Network with Gigabit Ports

Quickly expand your wired network with eight 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. The MS108G is flexible and fully compatible with:

• 4K Ultra HD TVs
• Computers
• Printers
• IP cameras
• Game consoles

This makes it perfect for use in homes, small offices, and even dormitory environments.

Cool, Ultra-Compact Design

A sleek, square build with a cool red and black color combination provides a high-tech look and feel. About the same size as a smartphone, the MS108G can sit anywhere in your home without taking up too much space.

Plug and Play

Forget about complicated installation! Simply connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.

Reliable Performance

Equipped with Half/Full Duplex and MAC Address Learning Technology, each unit undergoes extensive testing before shipment to ensure reliable, uninterrupted connections for years to come.

Go Green with Your Ethernet

Upgrade to a gigabit network while being environmentally conscious! The MS108G features the latest energy-efficient technologies that:

• Expand network capacity with less power consumption
• Automatically adjust power use based on link status and cable length

This helps to significantly reduce the carbon footprint of your network.

Key Features at a Glance

• Switch Type: Unmanaged
• Number of Ports: 8 Gigabit Ethernet (10/100/1000 Mbps) RJ-45 ports
• Networking Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Full Duplex and Half Duplex Support: Yes
• Auto MDI/MDI-X and Auto-Negotiation: Yes
• Store-and-Forward Technology: Yes
• Jumbo Frames Support: Up to 9000 bytes

Design and Dimensions

• Color: Black with red accents
• LED Indicators: LAN, Power
• Dimensions:
  • Width: 144.8 mm
  • Depth: 72.3 mm
  • Height: 25 mm

Power Specifications

• Power Source: DC
• Power Supply Included: Yes
• Input Voltage: 9 V
• Input Current: 0.6 A

Packaging Details

• Package Dimensions:
  • Width: 149 mm
  • Depth: 93 mm
  • Height: 62 mm
• Package Weight: 250 g

With its compact design, plug-and-play simplicity, and energy-efficient operation, the MS108G is the ideal choice for anyone looking to expand their wired network with high-speed, reliable performance.
