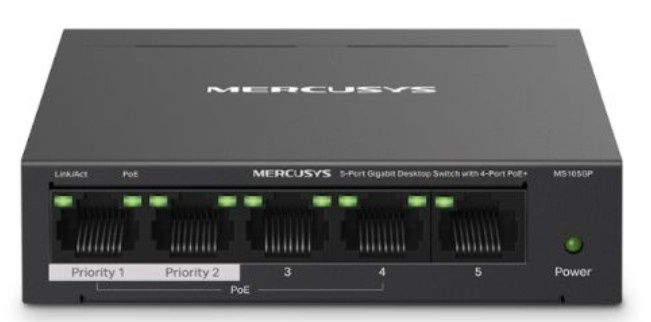

Mercusys (MS105GP) 5-Port Gigabit Desktop Switch with 4-Port PoE+, Steel Case

Key Features

• Full Gigabit Ports: Equipped with 5x 10/100/1000 Mbps RJ45 ports for high-speed connectivity.
• Two Cables in One: Four PoE+ ports enable data and power transfer over a single cable.
• High Power PoE+: Supports up to 30 W per PoE port and a total of 65 W for all PoE ports.*
• Long-Range up to 250 m: Extend Mode increases PoE transmission distance to 250 m.*
• Isolation Mode: One-click traffic division for enhanced stability and security.
• Compliant with Powered Devices: Compatible with IEEE 802.3af/at compliant PDs.
• Durable Metal Casing: Ensures efficient heat dissipation and long-lasting network stability.
• Plug and Play: Simple installation without the need for additional configuration.

PoE+ Ports for Network Deployment

The MS105GP features five gigabit ports, including four PoE+ ports (1-4). Each PoE+ port supports up to 30 W and complies with 802.3af/at Powered Devices standards. With a total PoE power budget of 65 W, this switch is ideal for various applications, such as:

• Surveillance for offices, dormitories, and small businesses.
• Compatibility with devices like IP cameras, access points, IP phones, PCs, and video recorders.

Benefits of Power over Ethernet (PoE)

• No Fuss: Simplifies installation—no need for electricians.
• Cost-Efficiency: Eliminates extra cables and power adapters, reducing infrastructure costs.
• Flexibility: Enables deployment in complex environments with more placement options.
• Power Management: Protects devices from power surges while optimizing power usage.
• IEEE 802.3af/at Compliance: Ensures compatibility with a wide range of powered devices.

Extended Range and Enhanced Security

• Long-Range up to 250 m: Activate Extend Mode** to increase PoE transmission distance, making it perfect for wide-area surveillance installations.
• Traffic Separation: Isolation mode divides traffic for ports 1-4, preventing tampering and isolating broadcast storms for improved protection.
• Port Prioritization: Prioritize specific ports for critical applications like voice and video, ensuring high-quality performance.

Easy Installation and Durability

• Plug and Play: Features auto-negotiation (10/100/1000 Mbps) and automated MDI/MDIX for effortless setup.
• Durable and Silent: The metal casing provides excellent heat dissipation, signal interference prevention, and long-lasting performance.

Technical Specifications

• Ports: 5x 10/100/1000 Mbps RJ45 ports (4 PoE+ ports).
• PoE Power Budget: 65 W (30 W per port).
• Dimensions: 99.8 x 98 x 25 mm.
• Mac Address Table: 2K.
• Jumbo Frame: 9 KB.
• Operating Environment:
  • Temperature: 0°C~40°C (operating), -40°C~70°C (storage).
  • Humidity: 10%~90% RH (operating), 5%~95% RH (storage).

Package Contents

• Included:

  • 5-Port Gigabit Desktop Switch (MS105GP)
  • Power Adapter
  • Quick Installation Guide

• Package Type: Retail

• Weight: 0.7000 kg

Notes:
*PoE budget calculations are based on laboratory testing. Actual PoE power budget may vary due to client limitations and environmental factors.
*In Extend Mode, port speed downgrades to 10 Mbps. Transmission distance may vary depending on PoE-powered device power consumption and cable quality/type.
