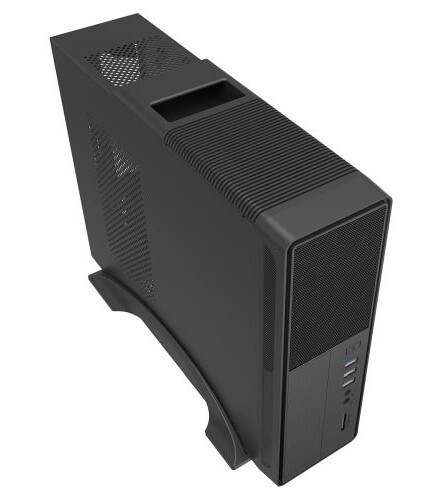

Micro ATX Slim Desktop Case, 300W PSU, Mesh Front, 8cm Fan, Card Reader, USB 3.0, Black (S014B)

Compact and Efficient Design

The S014B Micro Slim Case is designed with a very compact structure, perfect for saving desk space. Its front panel features mesh details for enhanced airflow, and an 8cm fan is included at the top to ensure optimal cooling. Additionally, the case is equipped with a silent micro SFX 300W PSU, delivering reliable performance for your business PC system.

Key Features

• 300W Micro ATX PSU included for dependable power.
• 1 x 8cm Top Cooling Fan for efficient airflow.
• Built-in Card Reader supporting SD/MMC/MS 3-in-1 cards.
• Removable HDD/ODD Cage to simplify PC assembly.
• Front mesh design for improved ventilation.

Specifications

Form Factor

• Micro ATX

Power Supply

• Wattage: 300 W
• Type: Micro ATX PSU

Motherboard Support

• Micro ATX
• Mini ITX

Connectors and Controls

• 1 x USB 3.0
• 2 x USB 2.0
• 1 x HD Audio (also supports AC97)
• 1 x Microphone
• SD/TF Card Reader (built-in)

Drive Bays

• 1 x 5.25” External
• 2 x 3.5” Internal
• 2 x 2.5” Internal

Expansion Slots

• 4 x Half-Height Expansion Slots

Cooling System

• Included Fans:
  • Top: 1 x 80 mm fan
• Fan Mounts:
  • Front: None
  • Top: 1 x 80 mm
  • Rear: None
  • Side: None
  • Bottom: 1 x 50 mm
• Radiator Support: None

Build and Compatibility

• Colour: Black
• Material:
  • Body: 0.5mm SECC Metal
  • Front Bezel: Plastic
  • Side Panel: Vented
• GPU Maximum Length: 225 mm
• CPU Cooler Maximum Height: 82 mm

Power Supply Connectors

• 1 x 20 + 4 Pin ATX
• 1 x +12V 4 Pin CPU
• 2 x 4 Pin Molex
• 3 x SATA
• 1 x FDD

Dimensions and Weight

• Weight: 3.1 kg
• Dimensions (WxHxD): 100 x 306 x 403 mm

Additional Features

• Includes Stand, PSU (installed), and Screw Pack.
• Package Weight: 4.1 kg

This sleek and functional Micro ATX Slim Desktop Case is a perfect choice for building a compact, efficient, and reliable PC system.
