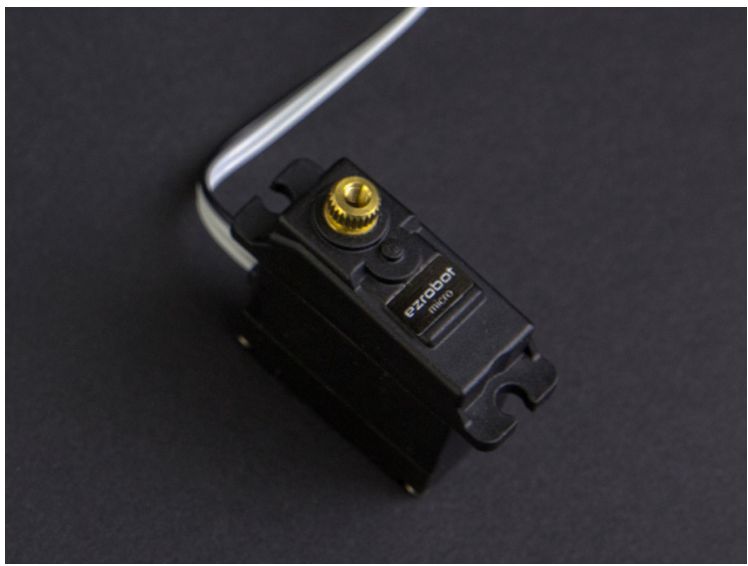

Micro HDD Servo

This very strong and small metal-geared heavy-duty digital (HDD) servo is designed to deliver exceptional performance in a compact size.

Key Benefits:

• Impressive strength and small size, making it ideal for small robots or tight areas where a strong, small servo is required.
• Engineered for durability, with metal gears and real ball bearings that can lift an impressive 19 kg/cm.
• Built tough through years of R&D to ensure reliability and long-lasting performance.

HEAVY DUTY DIGITAL SERVO MOTORS

These HDD servo motors are perfect for enabling your robots to walk, move, or lift with ease. Their robust construction ensures they can handle demanding tasks efficiently.

Features

• Operating speed: 0.22±0.01 sec/60° (7.4v)
• Running current: 1400±30mA (7.4v)
• Stall torque: 19±0.20kg·cm (7.4v)
• Stall current: 3000±50mA (7.4v)
• Running life: > 180,000 Turns
• Temperature range: -10°C to +50°C
• Operating voltage: 4.8V to 8.4V
• Dual ball metal bearing for smooth operation
• All metal gears for enhanced durability
• Connector wire length: 32cm
• Futaba 3f (25 teeth) for driving spline/shaft
• 6.2mm C1 standard spline (including teeth)

This servo is a perfect combination of strength, reliability, and compact design, making it an excellent choice for your robotic needs.
