Rotation Servo

Heavy Duty Digital Servo with EZ-Bit Connection

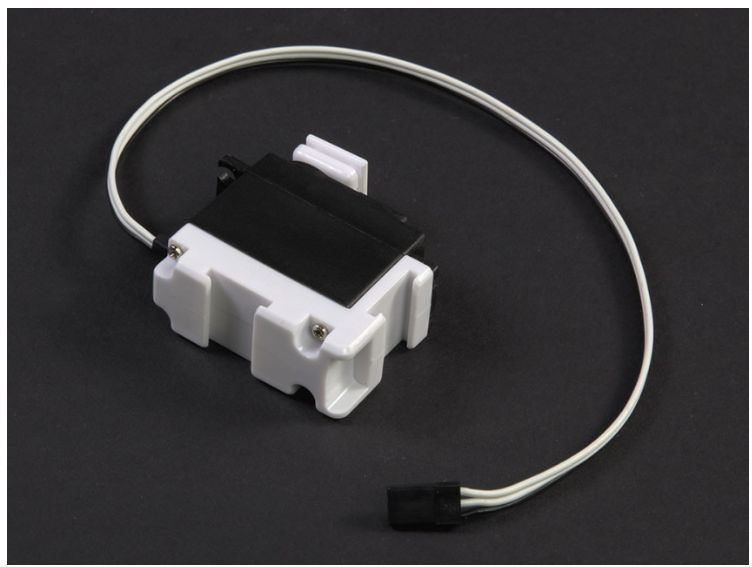

This is a HDD (Heavy Duty Digital) 19 kg/cm servo with an EZ-Bit connection that rotates 180 degrees. Its metal internals are designed to withstand high loads, ensuring durability and reliability.

• EZ-Bit Accessories Compatibility: Up to three EZ-Bit accessories can be added to this component.
• Ease of Installation: The servo comes with a mount that connects directly to any EZ-Bit connector.

SIMPLY CLIP AND PLAY

Customize your robot with EZ-Bits!
All EZ-Robots include EZ-Clip connections, making innovation and customization fast and fun. Simply slide the tab into the slot to establish a secure bond. The parts can be separated again by sliding them apart.

With multiple EZ-Bits, you can create arms, legs, or anything else you dream up!

​3D PRINTABLE OPEN SOURCE PARTS

The 3D printable STL files for all EZ-Bits and robot parts are available in the ARC Software.

• Customize and 3D print your own robot parts and designs.
• Share your creations with other EZ-Robot users from around the world!

HEAVY DUTY DIGITAL SERVO MOTORS

Inside the HDD servo motors are metal gears and real ball bearings that can lift 19 kg/cm! These servos are strong enough to let your robots walk, move, or lift with ease.

Engineered for toughness with years of R&D, these servo motors are built to last. Check out our demonstration video to see them in action!

Features

• Operating speed: 0.22±0.01 sec/60° (7.4v)
• Running current: 1400±30mA (7.4v)
• Stall torque: 19±0.20kg·cm (7.4v)
• Stall current: 3000±50mA (7.4v)
• Running life: > 180,000 Turns
• Temperature range: -10°C to +50°C
• Operating voltage: 4.8V to 8.4V
• Dual ball metal bearing
• All metal gears
• Connector wire length: 32cm
• Futaba 3f (25 teeth) for driving spline/shaft
• 6.2mm C1 standard spline (including teeth)

With its robust build and versatility, this servo is the perfect choice for your next robotics project!
