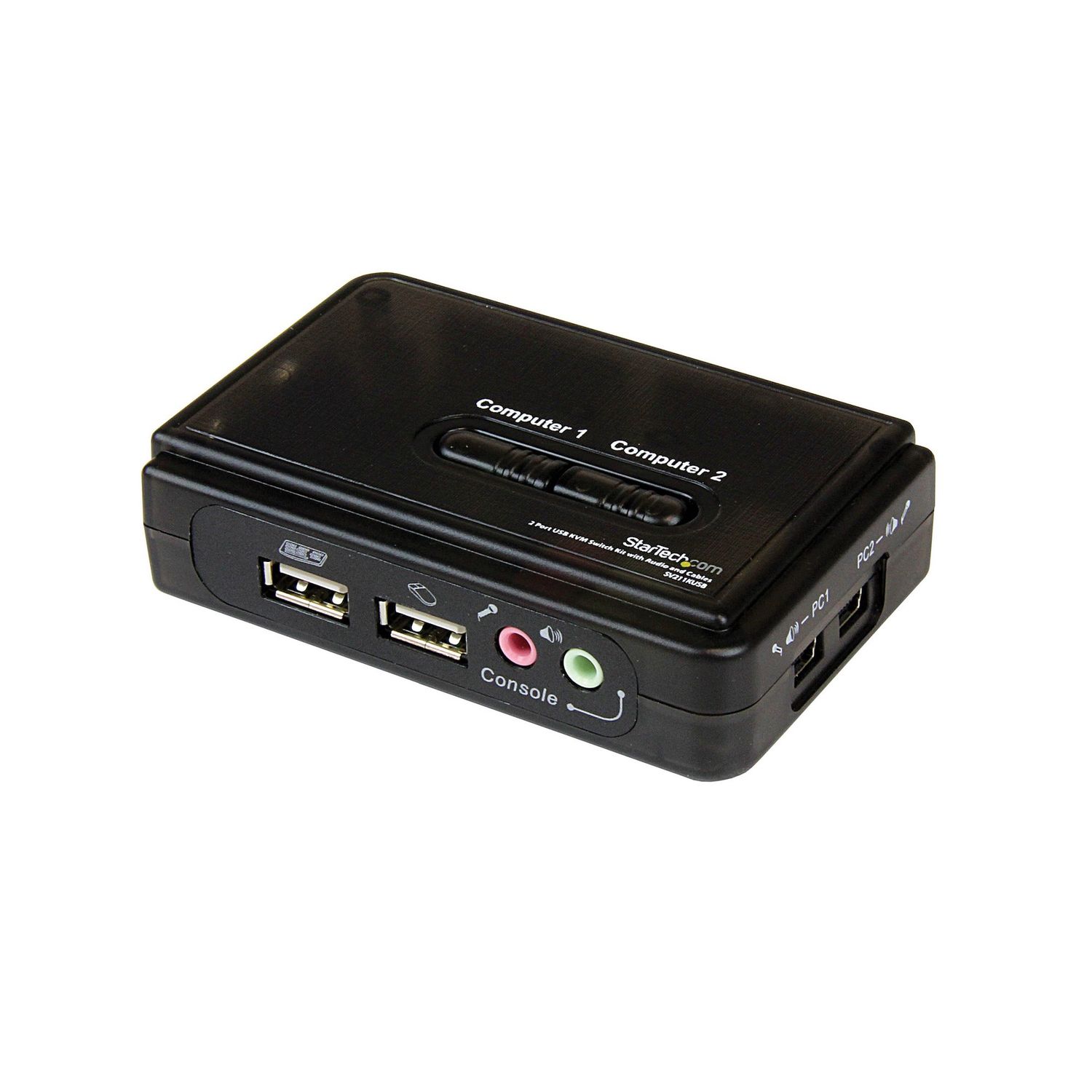

Startech 2 Port USB KVM Switch Kit (VGA)

Key Features

• Cables Included: Comes with 4 ft. cables for convenience.
• Maximum Resolution: Supports up to 2048 x 1536 resolution.
• Switching Options: Seamless switching with Hotkey or push-button.
• Audio Support: Includes audio for a complete switching solution.
• Compact Design: Features a small footprint for space-saving.
• USB Powered: No external adapter required.

Warranty Information

• Warranty: 2 Years

Connector(s)

• Console Interface(s):
  • 1 - VGA (15 pin, High Density D-Sub)
  • 2 - 3.5 mm Mini-Jack (3 Position)
  • 2 - USB 2.0 Type-A (4 pin, 480Mbps)
• Host Connectors:
  • 2 - USB Mini-B (5 pin)
  • 2 - VGA (15 pin, High Density D-Sub)

Hardware Specifications

• Audio Support: Yes
• KVM Ports: 2
• PC Interface: USB
• PC Video Type: VGA
• Number of Monitors Supported: 1
• Rack-Mountable: No
• Cables Included: Yes
• Daisy-Chain Support: No

Packaging Information

• Package Dimensions:
  • Height: 3.5 in [9.0 cm]
  • Length: 8.6 in [21.9 cm]
  • Width: 5.2 in [13.3 cm]
• Weight: 1.4 lb [0.6 kg]
• Package Quantity: 1

Performance

• On-Screen Display: No
• IP Control: No
• Hot-Key Selection: Yes
• Maximum Analog Resolutions: 2048x1536 @60Hz
• Maximum Number of Users: 1
• Port Selection Support: Push Button and Hotkeys

Physical Characteristics

• Product Dimensions:
  • Length: 3.8 in [9.7 cm]
  • Width: 2.6 in [6.6 cm]
  • Height: 0.9 in [2.4 cm]
  • Depth: 2.4 in [60 mm]
• Weight: 3.3 oz [94 g]
• Color: Black
• Material: Plastic
• Cable Length: 4.0 ft [1.2 m]

Power

• Power Source: USB-Powered
• Input Voltage: 5V DC
• Output Voltage: 5 DC

Software

• OS Compatibility: OS independent; No software or drivers required.

What's in the Box

• 1 - 2 Port KVM Switch
• 2 - 4ft. VGA USB KVM Cable
• 2 - 4ft. Audio Cable (3.5mm speaker/mic)
• 1 - Driver CD
• 1 - Instruction Manual
