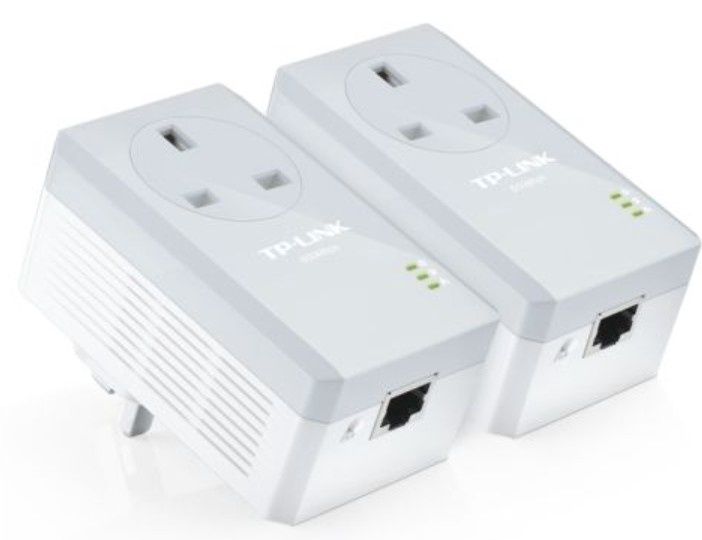

TP-LINK (TL-PA4010P KIT) AV600 10/100 Powerline Adapter Kit, 1-Port, AC Pass Through

Key Features

• Data transmission rates up to 600Mbps over electrical wires, perfect for HD video streaming.
• Integrated power socket ensures no power outlet is wasted.
• Plug and play design with easy encryption via the "Pair" button.
• Power-Saving Mode reduces power consumption by up to 85%.

What This Product Does

The TL-PA4010P KIT transforms your existing powerline into a high-speed network without the need for new wires or drilling. With no configuration required, simply plug the adapter into a power socket to establish a networking infrastructure instantly. Its integrated power socket ensures no power outlet goes unused.

With speeds of up to 600Mbps and a range of 300 meters over household electrical wiring, this kit is an excellent choice for building a multimedia entertainment network.

Up to 600Mbps, 300 Meters

Powered by advanced HomePlug AV technology, the TL-PA4010P KIT delivers stable, high-speed data transmission rates of up to 600Mbps across a household electric circuit for distances of up to 300 meters. This makes it an ideal solution for connecting multiple network-compatible devices such as:

• Computers
• Game consoles
• IPTV set-top boxes
• Printers
• NAS hard drives

Mains Filter for Better Performance

The Integrated Mains Filter optimizes powerline communication performance by suppressing noise interference from surrounding electronic equipment. This ensures that network performance remains unaffected, even when a high-power-consuming device is plugged into the same socket.

Pair Button for Easy Network Security

Setting up a Powerline network is easy with TP-LINK’s adapters. Simply plug and play, and use the “Pair” button to secure or manage multiple adapters in your home network.

Setup Steps:

1. Plug one Internet-connected adapter into a nearby power outlet.
2. Connect additional adapters to PCs, laptops, Internet TVs, or other networked devices via an Ethernet cable.

Recommended: Press the "Pair" buttons for network security and data encryption.

Extra Power Socket for Additional Devices

The integrated power socket provides real convenience by allowing another device or power bar to be connected as though it were a normal wall socket. This ensures no power outlet is wasted, even when the TL-PA4010P KIT is in use.

Reduce Power Consumption by Up to 85%

This new-generation Powerline Adapter is designed with an environment-conscious Power-Saving Mode. It automatically switches from "Working Mode" to "Power-Saving Mode," reducing energy consumption by up to 85%.

Product Specifications

• Kit/Single: Kit
• Wireless: No
• Wired Transfer Rate: 600 Mbps
• Standards and Protocols: HomePlug AV, IEEE802.3, IEEE802.3u
• Interface(s): 1 x 10/100Mbps Ethernet Port, Power Socket
• AC Pass Through: Yes
• Button(s): Pair Button
• LED Indicators: Power, Powerline, Ethernet
• Power Consumption:
  • Maximum: 2.60W
  • Typical: 2.30W
  • Standby: 0.50W
• Range: 300 meters in-house
• Modulation Technology: OFDM
• Encryption: 128-bit AES Encryption

Environmental Conditions

• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
• Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 90% non-condensing

Package Contents

• Powerline Ethernet Adapter x 2
• Ethernet cable (RJ45) x 2
• Resource CD
• Quick Installation Guide

Package Type: Retail
Package Weight: 0.6800 kg

Note: Powerline adapters should be deployed on the same circuit and in sets of two or more.
