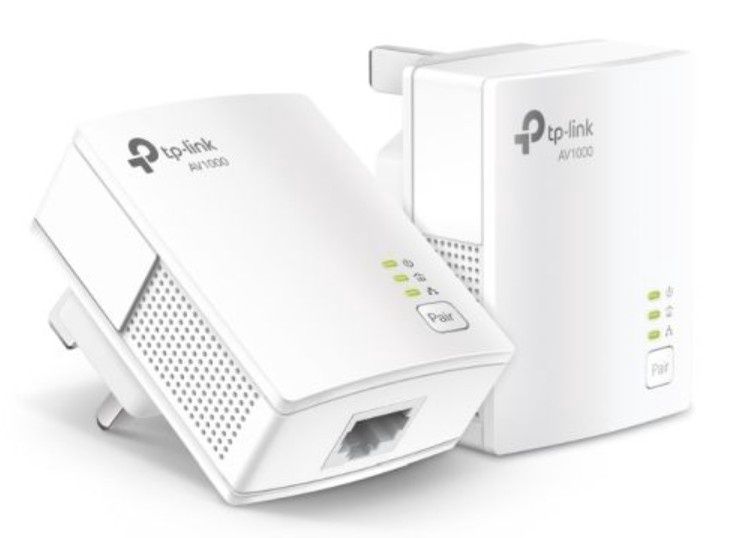

TP-LINK (TL-PA7017 KIT) AV1000 GB Powerline Adapter Kit, 1-Port

AV1000 Gigabit Powerline Starter Kit

Key Features

• HomePlug AV2 Standard: High-speed data transfer rates of up to 1000 Mbps, supporting all your online needs.
• Gigabit Port: Provides secure wired networks for desktops, smart TVs, or game consoles.
• Plug and Play: Allows setup of your powerline network in minutes, so you can enjoy fast, seamless wired and wireless connections right away.
• Patented Power-Saving Mode: Automatically reduces power consumption by up to 85%.

AV1000 Speeds and 300 Meters Range

Using advanced HomePlug AV2 technology, the TL-PA7017 KIT ensures stable and high-speed wired connection, providing data transmissions of up to 1000 Mbps over electrical wiring for ranges up to 300 meters. Stream in HD, game online, and download large files without interruption thanks to reliable powerline links.

Gigabit Port for Maximum Connectivity

With one Gigabit Ethernet port, the TL-PA7017 KIT allows users to connect a bandwidth-intensive device to the Internet at high speeds. This ensures smooth transmission of Ultra HD video streaming, making it the perfect home entertainment companion.

Plug and Play, No Configuration Required

Setting up is simple:

1. Connect a powerline adapter to the router.
2. Plug another powerline adapter into a wall socket in another room.
3. Done! Enjoy fast and seamless connections immediately.

Reduce Power Consumption by Up to 85%

The TL-PA7017 KIT, a new-generation powerline adapter, features a practical design and sophisticated Power-Saving Mode. It automatically switches from its regular "Working" mode to "Power-Saving" mode, reducing energy consumption by up to 85%.

Specifications

• Kit/Single: Kit
• Wireless: No
• Wired Transfer Rate: 1000 Mbps
• Standards and Protocols: HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Interface(s): Gigabit Ethernet Port
• AC Pass Through: No
• Antenna: -
• Button(s): Pair/Reset button
• LED Indicators: PWR, PLC, ETH
• Power Consumption:
  • Maximum: 2.7W (220V/50Hz)
  • Typical: 2.3W (220V/50Hz)
  • Standby: 0.5W (220V/50Hz)
• Range: 300 Meters over electrical circuit
• Modulation Technology: OFDM (PLC)
• Encryption: Powerline Security: 128-bit AES

Environment

• Operating Temperature: 0°C~40°C (32°F~122°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Package Contents

• Powerline Ethernet Adapter
• 6.5 ft. (2 m) Ethernet cable (RJ45)
• Quick Installation Guide

Package Details

• Package Type: Retail
• Package Weight: 0.4300 kg
