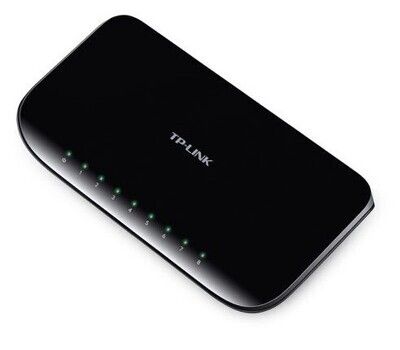

TP-LINK (TL-SG1008D) 8-Port Gigabit Unmanaged Desktop Switch, Plastic Case

TPLINK 8-Port Gigabit Desktop Switch

Key Features

• 8 Gigabit Auto-Negotiation RJ45 ports with Auto MDI/MDIX support.
• Green Ethernet technology to save on power consumption.
• IEEE 802.3x flow control ensures reliable data transfer.
• Plastic case with desktop or wall-mounting design.
• Plug and play installation, no configuration required.

What This Product Does

The TP-Link 8-Port Gigabit Desktop Switch (TL-SG1008D) offers a simple way to transition to Gigabit Ethernet. It enhances the speed of your network server and backbone connections, making Gigabit to the desktop a reality. With its innovative energy-efficient technology, the TL-SG1008D reduces power consumption, making it an eco-friendly choice for both home and office networks.

Gigabit Switch

Equipped with 8 10/100/1000Mbps ports, the TL-SG1008D significantly expands your network capacity, enabling instant transfer of large files. This feature is ideal for power users in homes, offices, workgroups, or creative environments, allowing for quick transfer of graphics, CGI, CAD, or multimedia files across the network.

Go Green With Your Ethernet

This new-generation switch incorporates energy-efficient technologies, allowing you to upgrade your network while minimizing power usage. It automatically adjusts power consumption based on link status and cable length, reducing the carbon footprint of your network.

Power Down Idle Ports

The TL-SG1008D detects the link status of each port and reduces power consumption for idle ports, unlike traditional switches that continue to consume power even when devices are off.

Power Budget According to Cable Length

Unlike many devices, this switch optimizes power usage based on cable length, ensuring less power is used with shorter cables to reduce energy waste.

Easy to Use

The TL-SG1008D's auto features make installation plug and play, eliminating the need for configuration. Key features include:

• Auto MDI/MDIX, removing the need for crossover cables.
• Auto-negotiation on each port, detecting the link speed of connected devices (10, 100, or 1000 Mbps) and adjusting for compatibility and performance.

Note: Maximum power savings are achieved when compared to a conventional TP-LINK switch. Actual savings may vary based on usage conditions.

Hardware Features

• Standards and Protocols: IEEE 802.3i, 802.3u, 802.3ab, 802.3x.
• Interface: 8 10/100/1000Mbps RJ45 Ports with Auto Negotiation and Auto MDI/MDIX.
• Fan Quantity: Fanless.
• Physical Security Lock: Not included.
• External Power Supply: 9VDC / 0.6A adapter.
• Jumbo Frame Support: 15 KB.
• Switching Capacity: 16 Gbps.
• Dimensions: 7.1 × 3.5 × 1.0 in. (180 × 90 × 26 mm).
• Max Power Consumption: 4.6W.
• Max Heat Dissipation: 15.8 BTU/h.

Software Features

• Transfer Method: Store and Forward.
• MAC Address Table: 4K entries.
• Advanced Functions:
  • Green Technology, saving power up to 80%.
  • 802.3x Flow Control and Back Pressure.

Other Information

• Certification: FCC, RoHS.
• Package Contents:
  • 8-Port Gigabit Desktop Switch (TL-SG1008D).
  • Power Adapter.
  • Installation Guide.
• Environment:
  • Operating Temperature: 0℃~40℃ (32℉~104℉).
  • Storage Temperature: -40℃~60℃ (-40℉~140℉).
  • Operating Humidity: 10%~90% non-condensing.
  • Storage Humidity: 5%~90% non-condensing.
