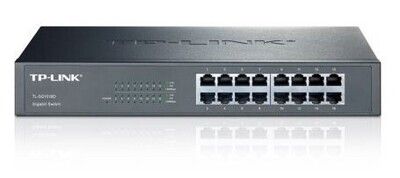

TP-LINK (TL-SG1016D) 16-Port Gigabit Unmanaged Desktop/Rackmount Switch, Steel Case

16-Port Gigabit Desktop/Rackmount Switch

Model: TL-SG1016D

Key Features:

• 16 10/100/1000Mbps ports
• Innovative energy-efficient technology saves power up to 15%*
• Supports MAC address self-learning, Auto MDI/MDIX, and Auto negotiation
• Plug & play design for hassle-free setup

What This Product Does:

The TL-SG1016D Gigabit Ethernet Switch provides a high-performance, low-cost, and easy-to-use solution to seamlessly upgrade your network to 1000Mbps.

• All 16 ports support auto MDI/MDIX, eliminating worries about cable types—simply plug and play.
• With innovative energy-efficient technology, it can save up to 15% of power consumption.
• Eco-friendly design: 80% of the packaging material is recyclable.

TP-LINK Green Technology:

This next-generation switch features innovative energy-efficient technologies to expand your network capacity with significantly less power consumption.

• Automatically adjusts power consumption based on link status to reduce the carbon footprint.
• Complies with the EU’s RoHS, restricting hazardous materials.
• Eco-friendly packaging: 80% of the material is recyclable.

High Performance:

• All 16 Gigabit RJ-45 ports allow for large file transfers and are compatible with 10Mbps and 100Mbps Ethernet devices.
• Non-blocking switching architecture ensures maximum throughput with full wire-speed packet forwarding and filtering.
• 10KB Jumbo frame improves the performance of large file transfers.
• IEEE 802.3x flow control (Full Duplex mode) and backpressure (Half Duplex mode) reduce traffic congestion for reliable operation.
• Ideal for upgrading to Gigabit speeds while protecting your previous investment.

Easy to Use:

The auto features of the TL-SG1016D make installation plug-and-play and hassle-free.

• Auto MDI/MDIX eliminates the need for crossover cables.
• Auto-negotiation detects the link speed (10, 100, or 1000 Mbps) and adjusts for compatibility and optimal performance.

Additional Specifications:

• Rackmountable: Yes
• Managed: No
• Number of Ports: 16
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• Interface(s): 16 x 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
• Switching Capacity: 32Gbps
• Power Supply: 100-240VAC, 50/60Hz
• Dimensions: 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)
• Transfer Method: Store and Forward

Advanced Functions:

• 802.3X Flow Control
• Back Pressure
• Auto-Uplink on Every Port

Package Contents:

• 16-Port Gigabit Desktop/Rackmount Switch
• Power Cord
• Installation Guide
• Rackmount Kits
• Rubber Feet

Package Details:

• Package Type: Retail
• Package Weight: 2.1500 kg

Maximum power savings when compared to a TP-LINK conventional switch. The actual saving rate may vary based on usage conditions.
