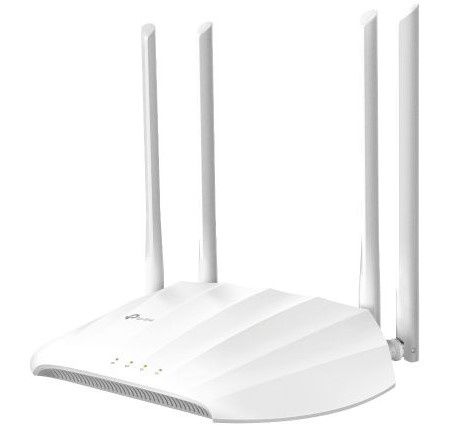

TP-LINK (TL-WA1201) AC1200 (867+300) Dual Band Wireless Access Point, MU-MIMO, Multi-mode - Range Extender, Multi-SSID, Client

Key Features of the AC1200 Wireless Access Point

• AC1200 Dual-Band Wi-Fi: Provides speeds of 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.
• Flexible Deployment: Supports Passive PoE for simultaneous electrical power and data transmission.
• Multiple Modes: Operates in Access Point, Range Extender, Multi-SSID, and Client modes to accommodate diverse network requirements.
• MU-MIMO Technology: Transfers data to multiple devices simultaneously for 2× faster performance.
• Boosted Coverage: Equipped with four fixed antennas and Beamforming technology to extend and focus Wi-Fi signals.
• Captive Portal: Includes a designed portal page for enhanced security and marketing opportunities.

Specifications

Primary Function

• Access Point

Bands

• Dual Band

Max Wireless Transfer Rate

• 867 Mbps

Max Wired Transfer Rate

• 10/100/1000 Mbps

Interface(s)

• 1 x 10/100/1000 Mbps Ethernet Port (Supports Passive PoE)

Wireless Standards

• IEEE802.11b/g/n 2.4 GHz
• IEEE 802.11ac/n/a 5 GHz

Antenna(s)

• 4 x Fixed High Performance Antennas

Button(s)

• Power On/Off Button
• WPS Button
• Reset Button

Power Supply

• 12V/1.5A

Dimensions

• 400 x 255 x 72 mm

Weatherproof

• No

Frequency

• 2.4 GHz and 5 GHz

Reception Sensitivity

5 GHz

• 11a 6 Mbps: -95 dBm
• 11a 54 Mbps: -81 dBm
• 11ac VHT20(MCS0): -94 dBm
• 11ac VHT20(MCS8): -71 dBm
• 11n HT40(MCS0): -91 dBm
• 11n HT40(MCS7): -71 dBm
• 11ac VHT80(MCS0): -88 dBm
• 11ac VHT80(MCS9): -63 dBm

2.4 GHz

• 11g 54 Mbps: -78 dBm
• 11n HT20(MCS0): -92 dBm
• 11n HT20(MCS7): -74 dBm
• 11n HT40(MCS0): -88 dBm
• 11n HT40(MCS7): -72 dBm

Wireless Modes and Functions

• Wireless Modes: Access Point, Range Extender, Client, Multi-SSID
• Wireless Functions:
  • Enable/Disable Wireless Radio
  • WDS Bridge
  • WMM
  • Wireless Statistics
  • Wireless Multicast Forwarding
  • DHCP Server
  • Access Control

Security

• Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions

Additional Features

• DHCP: Yes
• Quality of Service: WMM
• Advanced Functions: Captive Portal

Environmental Conditions

• Operating Temperature: 0°C~40°C (32°F~122°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 90% non-condensing

Package Contents

• Wireless Access Point TL-WA1201
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
• PoE Power Injector

Package Type

• Retail

Package Weight

• 0.8620 kg
