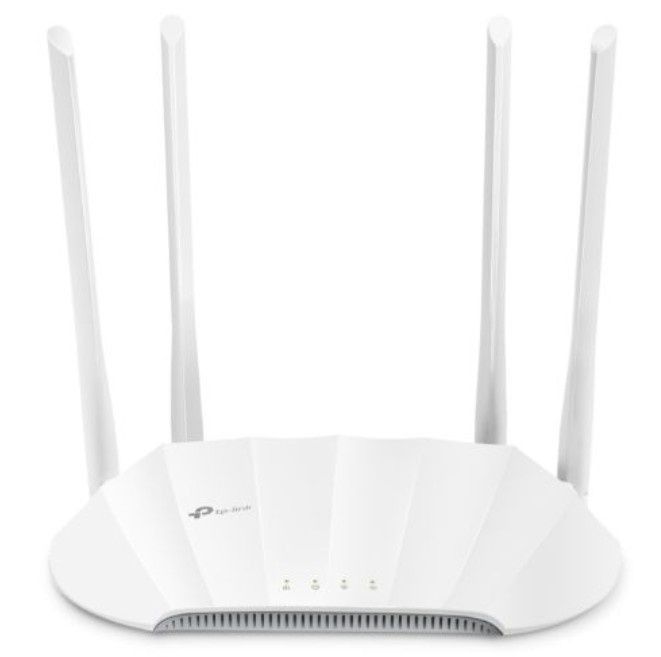

TP-LINK (TL-WA1801) AX1800 Dual Band Gigabit Wi-Fi 6 Access Point, Passive PoE, Range Extender, Multi-SSID & Client Modes

AX1800 Gigabit Wi-Fi 6 Access Point Features

• Gigabit WiFi 6 Speed
  Enjoy 1.8 Gbps Dual Band WiFi for faster browsing, streaming, and downloading—all at the same time.

• Flexible Deployment
  Supports Passive PoE, enabling electrical power and data to be carried simultaneously for ease of installation.

• Multiple Modes
  Operates in Access Point, Range Extender, Multi-SSID, and Client modes to meet any network requirements.

• Boosted Coverage
  Equipped with four fixed antennas and Beamforming technology, ensuring extended and concentrated Wi-Fi signals.

• Captive Portal
  Provides a secure, customizable portal page for heightened security and marketing opportunities.

The Advanced Wi-Fi is Upon Us

Wi-Fi 6 (802.11ax) represents a major leap in Wi-Fi technology, offering significant improvements in speed and total capacity. With the increasing availability of AX clients, now is the perfect time to upgrade to the newest generation of Wi-Fi.

Lightning-Fast AX1800 Dual Band Wi-Fi

Upgrade your home or office network with the latest dual band 802.11ax access point, offering combined speeds of up to 1800 Mbps.

• 5GHz Band: Ideal for Ultra-HD streaming and online gaming.
• 2.4GHz Band: Perfect for everyday tasks like browsing and emailing.

Boosted Wi-Fi Coverage

Four external antennas with Beamforming technology concentrate Wi-Fi signals towards your devices, ensuring reliable coverage across your home or office—even over long distances.

WPA3 - A New Level of Cyber Security

The latest WPA3 security protocol enhances cybersecurity with:

• Stronger encryption for Wi-Fi password protection.
• Improved defense against brute-force attacks, safeguarding your network.

Gigabit-Class Wired Performance

The gigabit Ethernet port ensures reliable, high-speed connections, making full use of gigabit-class bandwidth. Perfect for wired devices like PCs, IPTVs, and game consoles.

Deploy Anywhere with Just One Cable

Power over Ethernet (PoE) simplifies deployment by delivering power and data through a single Ethernet cable. Its elegant design and simple mounting options allow seamless integration into any interior.

Captive Portal Marketing

Ideal for small businesses, the Captive Portal creates a secure guest network while offering marketing opportunities. Use a customizable portal page to display ads or terms of use, enhancing brand awareness.

Multi-Mode 4 in 1

Supports multiple operation modes, including:

• Access Point
• Range Extender
• Multi-SSID
• Client

This flexibility allows you to tailor the Access Point to your network's needs.

Easy Setup and Management with the Tether App

Set up and manage your TL-WA1801 effortlessly with the free Tether app, available on Android and iOS devices.

Technical Specifications

• Primary Function: Access Point
• Bands: Dual Band
• Wi-Fi Rating: AX1800
• Max Single Band Wi-Fi Rate: 1201 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Interface: 1 x Gigabit Port (Supports Passive PoE)
• Wireless Standards:
  • IEEE 802.11b/g/n/ax (2.4 GHz)
  • IEEE 802.11a/n/ac/ax (5 GHz)
• Antenna: 4 external antennas with Beamforming technology
• Buttons: Power On/Off, WPS, Reset
• Power Supply: External Power Supply (48V/0.375A)
• Dimensions: 225 x 145.5 x 37 mm
• Frequency:
  • 5GHz: Up to 1201 Mbps
  • 2.4GHz: Up to 574 Mbps
• Security: WPA, WPA2, WPA3, WPA/WPA2-Enterprise encryptions
• Wireless Modes: Access Point, Range Extender, Client, Multi-SSID
• Environment:
  • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
  • Operating Humidity: 10% ~ 90% non-condensing

Package Contents

• Wireless Access Point TL-WA1801
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
• PoE Power Injector

This product ensures seamless connectivity, enhanced security, and versatile functionality, making it a perfect choice for homes, offices, and small businesses.
