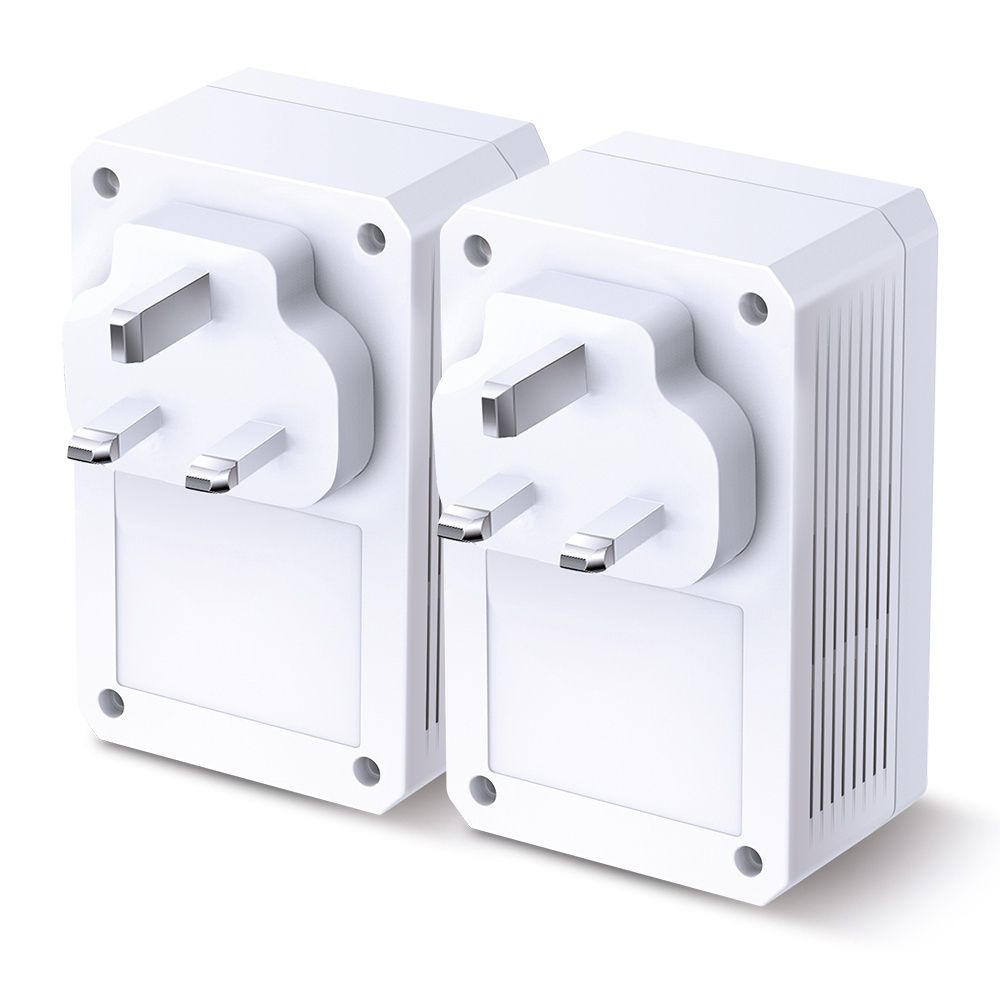

TP-Link AV1000 Gigabit Passthrough Powerline Starter Kit

Gigabit Network Goes Further with AV1000 Powerline

Unleash the Power of AV1000 Technology

With advanced HomePlug AV2 technology, the TL-PA7017P KIT delivers high-speed data transfer rates of up to 1000 Mbps. This makes it perfect for bandwidth-intensive activities such as:

• Multiple HD/3D/4K video streaming
• Online gaming
• Large file transfers

Ultra-Fast Data Transfer with Gigabit Port

Equipped with a Gigabit Ethernet port, the TL-PA7017P KIT ensures seamless connectivity for bandwidth-intensive devices. Enjoy smooth Ultra HD video streaming and elevate your home entertainment experience.

Effortless Setup: Plug and Play

Setting up the TL-PA7017P KIT is incredibly easy:

1. Connect one powerline adapter to your router.
2. Plug another powerline adapter into a wall socket in a different room.
3. Connect it to your internet-enabled device via Ethernet.

That’s it—no configuration required!

Integrated Power Outlet for Extra Convenience

Never worry about losing a power socket! The TL-PA7017P KIT features an AC pass-through power socket, allowing you to plug in additional devices like smart TVs or gaming consoles. No outlet goes to waste.

Energy-Saving Mode

Designed with the environment in mind, the TL-PA7017P KIT includes a Power-Saving Mode that reduces energy consumption by up to 85% when not in use.

Key Features at a Glance

• Maximum Data Transfer Rate: Up to 1000 Mbps
• Ethernet LAN Interface: Gigabit Ethernet with speeds of 10/100/1000 Mbps
• Built-in Power Socket: Yes
• Plug and Play: Yes
• Power Consumption: Typical use 2.3 W, Standby 0.5 W
• Maximum Operating Distance: 300 m
• Security Algorithms: 128-bit AES encryption for secure connections
• LED Indicators: LAN, PLC, Power

Technical Specifications

• Modulation Technology: OFDM
• Networking Standards: IEEE 1901, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
• Power Plug Type: Type E / F
• Operating Temperature Range: 0°C to 40°C
• Storage Temperature Range: -40°C to 70°C
• Operating Humidity Range: 10% to 90%

What’s in the Box?

• 2 Powerline Adapters
• LAN Cable (RJ-45)
• Quick Installation Guide

Certifications

• RoHS Compliance
• CE Certified

This AV1000 Gigabit Passthrough Powerline Starter Kit is your go-to solution for extending high-speed internet connectivity across your home. Whether for streaming, gaming, or file transfers, the TL-PA7017P KIT delivers reliable performance with ease of use.
