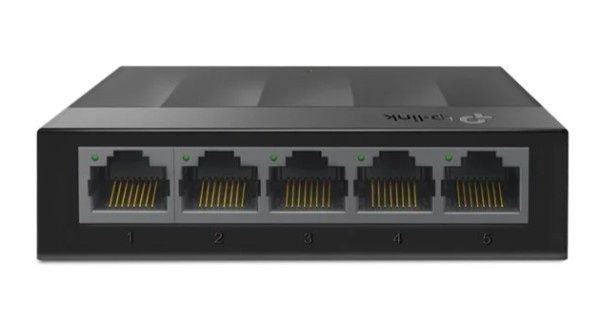

TP-Link LS1005G Network Switch Unmanaged Gigabit Ethernet (10/100/1000) Black

Let LiteWave Bring You Lighter Network Life

The TP-Link LiteWave Series Unmanaged Switches offer an easy and affordable way to expand your wired network. These switches are plug-and-play, making them simple to use and reliable. With support for Auto-MDI/MDIX on all ports, there's no need to worry about the type of cable to use. Just connect and expand your network instantly.

Go Green with Your Ethernet

The LiteWave Series incorporates energy-efficient technology, helping you save both power and money. Key benefits include:

• Automatic power consumption adjustment based on link status and cable length.
• Minimized carbon footprint while expanding your network.
• Lower energy bills — a win for both your wallet and the planet!

Gigabit Ports for Faster Speeds

Boost your network's performance with the LS1005G 5-port Gigabit desktop switch. Its non-blocking, 5× 10/100/1000Mbps ports ensure seamless and rapid transfer of large, bandwidth-intensive files without interference.

Versatile Use for Various Scenarios

The LS1005G is fully compatible with a wide range of networked devices, including:

• Computers
• Printers
• Webcams
• IPTVs

Its versatile design makes it suitable for school dormitories, surveillance setups, homes, and small businesses.

Key Features at a Glance

Management Features

• Switch type: Unmanaged

Ports & Interfaces

• Number of RJ-45 Ethernet ports: 5
• Port type: Gigabit Ethernet (10/100/1000)

Network Standards

• Supported standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
• Auto MDI/MDI-X: Yes
• Auto-negotiation: Yes

Data Transmission

• Switching capacity: 10 Gbit/s
• Forwarding rate: 7.4 Mpps
• MAC address table: 2000 entries
• Jumbo frames support: Yes (up to 16000 bytes)
• Packet buffer memory: 1.5 MB

Design

• Product color: Black
• Housing material: Plastic
• LED indicators: Yes
• Wall mountable: Yes
• IP protection rating: IP20, IP40

Power

• Power supply included: Yes
• DC input voltage: 5 V
• Maximum power consumption: 3.7 W

Operational Conditions

• Operating temperature: 0 - 40 °C
• Storage temperature: -40 - 70 °C
• Operating humidity: 10 - 90%
• Heat dissipation: 12.617 BTU/h

Dimensions

• Width: 90 mm
• Depth: 72 mm
• Height: 23 mm

Packaging & Certification

• Package type: Box
• Quick start guide: Yes
• Certifications: CE, FCC, RoHS

Why Choose the LS1005G?

With its energy-efficient design, gigabit speeds, and versatile compatibility, the LS1005G is the perfect choice for anyone looking to expand their network effortlessly. Whether for home, office, or school, this switch delivers reliable performance and sustainability.
