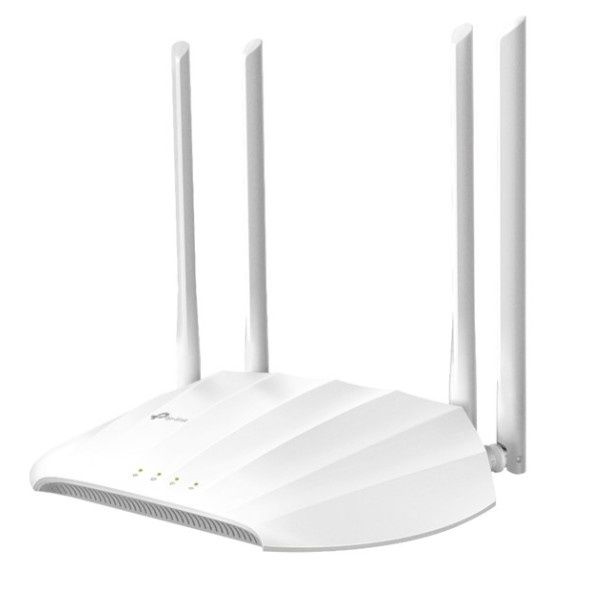

TP-Link TL-WA1201 Wireless Access Point 867 Mbit/s White Power over Ethernet (PoE)

Features

• Dual-Band Support: Operates on both 2.4 GHz and 5 GHz frequencies.
• Maximum Data Transfer Rate: Up to 867 Mbit/s.
  • 2.4 GHz: 300 Mbit/s
  • 5 GHz: 867 Mbit/s
• Ethernet LAN Data Rates: Supports 10, 100, and 1000 Mbit/s.
• Networking Standards: Compatible with IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, and IEEE 802.11n.
• MIMO Technology: Features Multi-User MIMO for improved performance.
• Wi-Fi Multimedia (WMM): Ensures optimized performance for multimedia applications.
• VLAN Support: Includes Multicast VLAN features.
• Quality of Service (QoS): Prioritizes network traffic for seamless usage.
• Transmitting Power:
  • CE: 20 - 23 dBm
  • FCC: 30 dBm

Security

• Advanced Security Algorithms: Supports 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK.
• Multiple SSIDs: Allows for enhanced network management.
• Auto Wireless Distribution System (WDS): Ensures seamless wireless bridging.
• Access Control List (ACL): Provides controlled network access.

Protocols

• Universal Plug and Play (UPnP): Simplifies device setup.
• DHCP Support: Includes both DHCP Server and DHCP Client functionalities.
• IPv4 & IPv6 Compatibility: Features a dual-stack IPv4/IPv6 for future-proof networking.

Ports & Interfaces

• Ethernet LAN (RJ-45) Port: Includes 1 port for wired connectivity.

Power

• Power over Ethernet (PoE): Simplifies installation by delivering power and data over a single cable.
  • Type Supported: Active PoE
  • Output Voltage: 12 V
  • Output Current: 1.5 A

Design

• Placement: Designed for tabletop use.
• Color: Sleek white finish.
• Buttons: Includes On/Off switch, Reset button, and WPS push button.

Antenna

• Type: Features external antennas.
• Quantity: 4 antennas for extended coverage.

Performance

• Compatible Operating Systems:
  • Microsoft Windows 98SE, NT, 2000, XP, Vista™, Windows 7, 8, 8.1, 10
  • MAC OS, NetWare, UNIX, Linux
  • Compatible with Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, and other Java-enabled browsers.

Certifications

• Compliance Certificates: Certified with RoHS, FCC, and CE standards.

Dimensions

• Width: 225 mm
• Depth: 145.5 mm
• Height: 37 mm

Packaging Data

• Package Dimensions:
  • Width: 400 mm
  • Depth: 255 mm
  • Height: 69 mm
• Package Weight: 860 g
• Included Accessories:
  • AC Adapter
  • PoE Adapter
  • LAN Cable (RJ-45)
  • Quick Start Guide

Operational Conditions

• Operating Temperature: 0 - 40 °C
• Storage Temperature: -40 - 70 °C
• Operating Humidity: 10 - 90%
• Storage Humidity: 10 - 90%

This feature-packed wireless access point is designed to deliver high-speed and reliable performance, making it an excellent choice for both home and business use.
