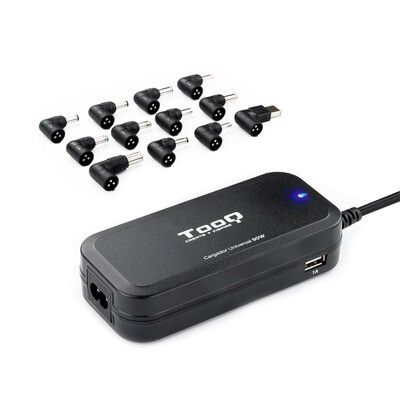

Tooq Universal Laptop Charger 90W - TQLC-90BS02AT

Automatic Universal Charger 90W Multivoltage with 2xUSB and 12 connectors

EAN-13: 8433281007246

Key Features:

• Automatic Universal Charger for laptops and other devices with 12 interchangeable DC connectors.
• Enables charging of MP3 players, mobile phones, digital cameras, camcorders, and other devices with USB output via the USB port on the charger.
• Power: 90W

Specifications

General Features:

• Automatic Universal Charger for laptops and other devices.
• Suitable for home use.
• Includes 12 interchangeable DC connectors to ensure maximum compatibility with laptops.
• Multivoltage with self-regulating output voltages:
  • 2V/15V/16V/18.5V/19V/19.5V/20V
  • 2xUSB: DC 5V 1A(MAX), 5W
• Input Voltage: 100-240V
• Features the advanced MCU control chip (Micro Computer Unit) for plug-and-go functionality.
• Designed for maximum safety:
  • Anti-static design (100,000 level).
  • Fireproof housing and resistance to high temperatures.
• Tested MTBF (Mean Time Between Failure) exceeds 50,000 hours, ensuring guaranteed quality.
• Allows charging of MP3 players, mobile phones, digital cameras, camcorders, and other devices with USB output through the USB port of the charger.
• Safety protection:
  • Protection against temperature rises above 85°C.
  • Protection against overvoltage, overcurrent, short circuit, and charging time.
• Built-in active PFC with efficiency greater than 90%.

Specifications of Included DC Connectors:

• M1: 15.0V, 6.3*3.0mm (Toshiba)
• M2: 16.0V, 5.5*2.5mm (IBM, Lenovo)
• M3: 16.0V, 6.5*4.4mm (Sony, Fujitsu)
• M4: 18.5V, 4.8*1.7mm (Compaq, HP)
• M5: 19.0V, 5.5*2.5mm (Acer, Asus, Compaq, Delta, HP, Fujitsu, Gateway, Toshiba, Liteon)
• M6: 19.0V, 5.0*3.0mm (Samsung)
• M7: 19.0V, 5.5*2.1mm (Acer, Compaq, Delta, HP, Fujitsu, Gateway, Toshiba, Liteon)
• M8: 19.5V, 6.5*4.4mm (Sony)
• M11: 20.0V, 7.9*5.4mm (IBM, Lenovo)
• M15: 12.0V, 4.81.710.7mm DC-F (ASUS, HP)
• M20: 19.0V, 4.01.710.7mm DC-F (HP)
• M28: 20.0V, 11*4.6mm (Lenovo Ultrabook)

Package Content:

• 1 x Automatic Universal Charger
• 1 x User's Manual
• 12 interchangeable DC connectors
