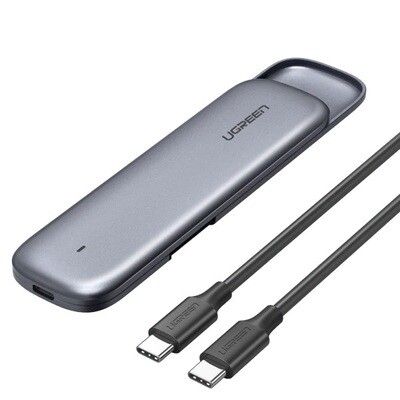

UGreen Enclosure for M.2 PCI-E NVME SSD USB 3.1

Portable NVMe M.2 SSD External Enclosure

The M.2 USB-C Enclosure is designed to house a M-Key or M+B Key NVMe PCIe SSD and transform it into a portable USB 3.1 external drive for maximum utilization. With a tool-free design and no driver needed, it’s as simple as plug-and-play. This enclosure is ideal for:

• Cloning files
• Backing up data
• Reusing old M.2 SSDs
• Expanding storage space

10Gbps SuperSpeed

Equipped with the latest USB 3.1 Gen 2 and PCIe GEN 3, this M.2 SSD enclosure supports an impressive data transmission rate of up to 10Gbps. It’s fast enough to transfer 1GB files in just 1 second.

UASP Supported

The USB 3.1 interface works seamlessly with UASP (USB Attached SCSI Protocol), delivering:

• 70% faster read speed
• 40% faster write speed
  (compared to conventional USB 3.1 when paired with a UASP-enabled host computer).

Broad Compatibility

M-Key M.2 SSD Compatibility

Compatible with:

• Samsung: 970 EVO Plus (250GB/500GB/1TB), 970 EVO (250GB/500GB/1TB/2TB), 970 Pro, 960 EVO, 950 PRO
• Crucial: P1 (500GB/1TB)
• WD: Black SN750 (250GB/500GB/1TB/2TB), Blue SN500 2280
• Intel: 760P Series
• ADATA: XPG SX8000/XPG SX8200
• CORSAIR: Force Series
• Plextor: M8Pe, M9Pe
• HP: EX900
• Kingston: A1000
• PNY: CS2030
• Seagate: BarraCuda 510, FireCuda 510
• SanDisk: EXTREME PRO 3D SSD (500GB/1GB)

M+B Key M.2 NVMe PCIe SSD Compatibility

Compatible with:

• Kingston: A1000
• Intel: Optane 800P
• Toshiba: RC100
• Pioneer: APS-SE10G-512

USB-C & USB-A Devices Supported

The enclosure features a USB C 3.1 Gen2 interface and includes a 0.5m USB-C to USB-C cable. It works directly with:

• USB-C/Thunderbolt 3 laptops & desktops
• OTG-enabled phones/tablets

Supported devices include:

• MacBook 2016, MacBook Pro 2017, MacBook Air 2018
• Samsung Galaxy Tab S4 10.5/S8/S9
• Lenovo XPS 15/13
• Google Pixelbook
• Acer Chromebook R11

For USB-A devices (e.g., Sony PlayStation 4, PS4 Slim, PS4 Pro, PS3, Xbox One S), a USB-A to USB-C Cable is required (not included).

Warm Reminder

1. Only supports PCIe NVME M-Key M.2 SSD. Does not support PCIe AHCI M.2 SSD or M.2 NGFF SATA SSD. Some SSDs have both AHCI & NVMe or SATA & NVMe editions available (e.g., Samsung SM951 SSD).
2. To achieve 10Gbps data transmission rate, ensure your PC’s USB 3.1 interface is USB 3.1 Gen 2. PCs with USB 3.1 Gen1 max out at 5Gbps.
3. The aluminum case may heat up during use, as high-speed NVMe M.2 drives generate significant heat while operating.

Package Contents

• 1 x Enclosure for M.2 PCI-E NVME SSD
• 1 x User Manual

Key Features

• 10Gbps data transmission rate
• Plug and play, no driver needed
• Compact and portable with a sleek aluminum shell

Specifications

• SKU: 60354
• Color: Grey
• USB Interface: USB C 3.1 Gen 2
• Included Cable: USB-A to USB-C
• Transfer Speed: 10Gbps
• Max Capacity Supported: 2TB
• Compatibility: M-Key M.2 SSD / M+B Key M.2 NVMe PCIe SSD
• EAN/UPC: 6957303863549
• Hardware Interface: FireWire eSATA
• Hardware Platform: Mac, PC, Linux, Windows
• Package Dimensions: 6.14 x 3.78 x 0.75 inches
• Item Weight: 3.87 ounces
